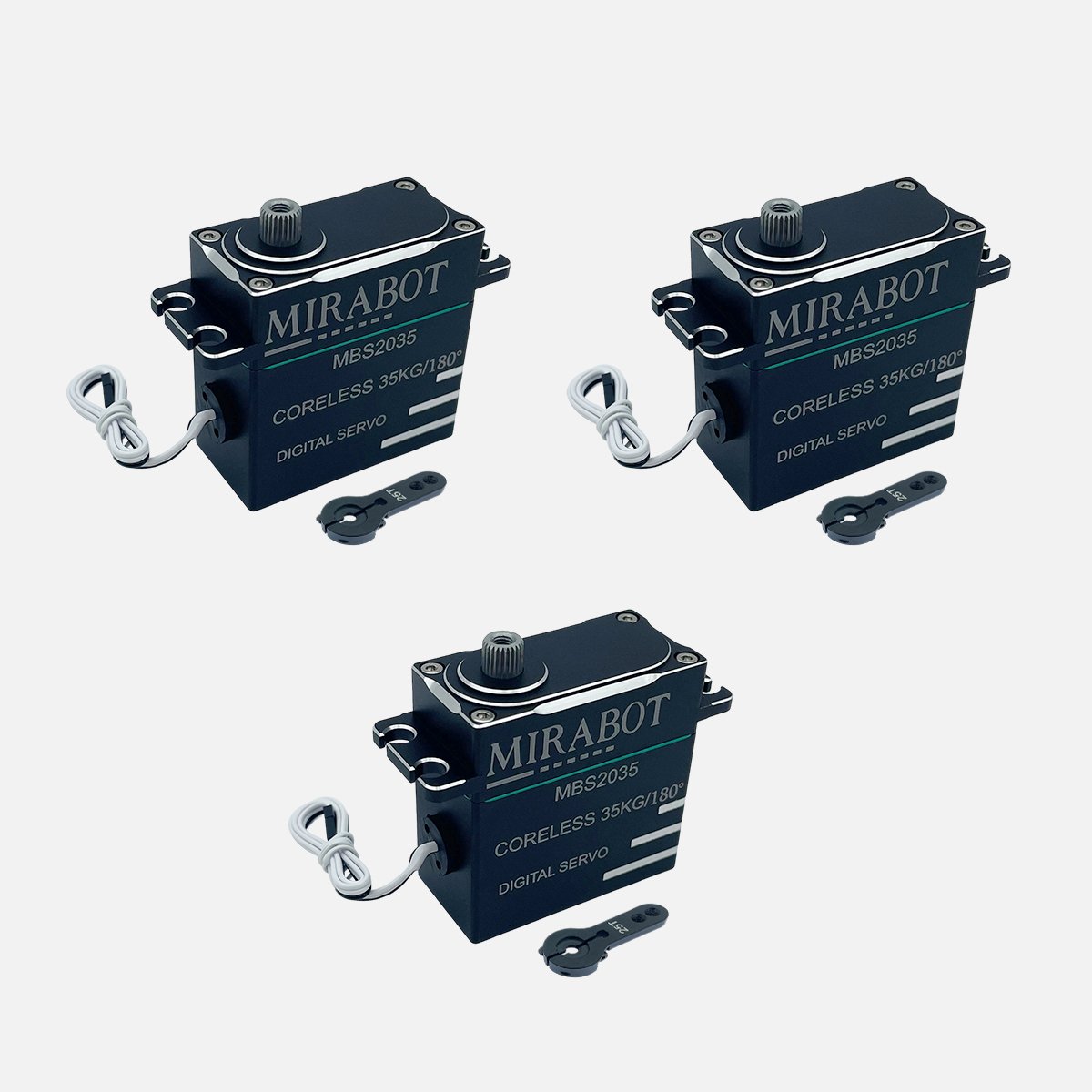

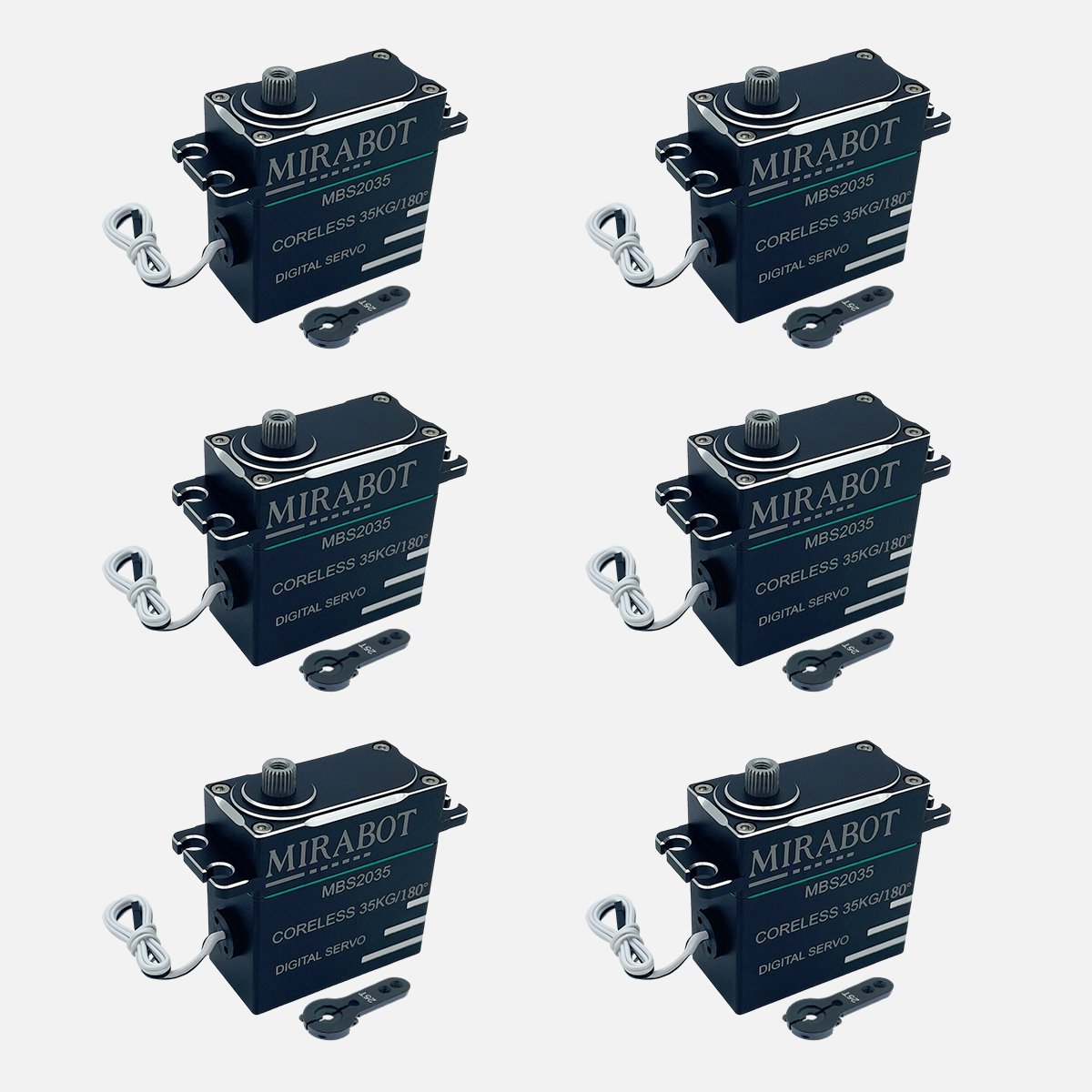

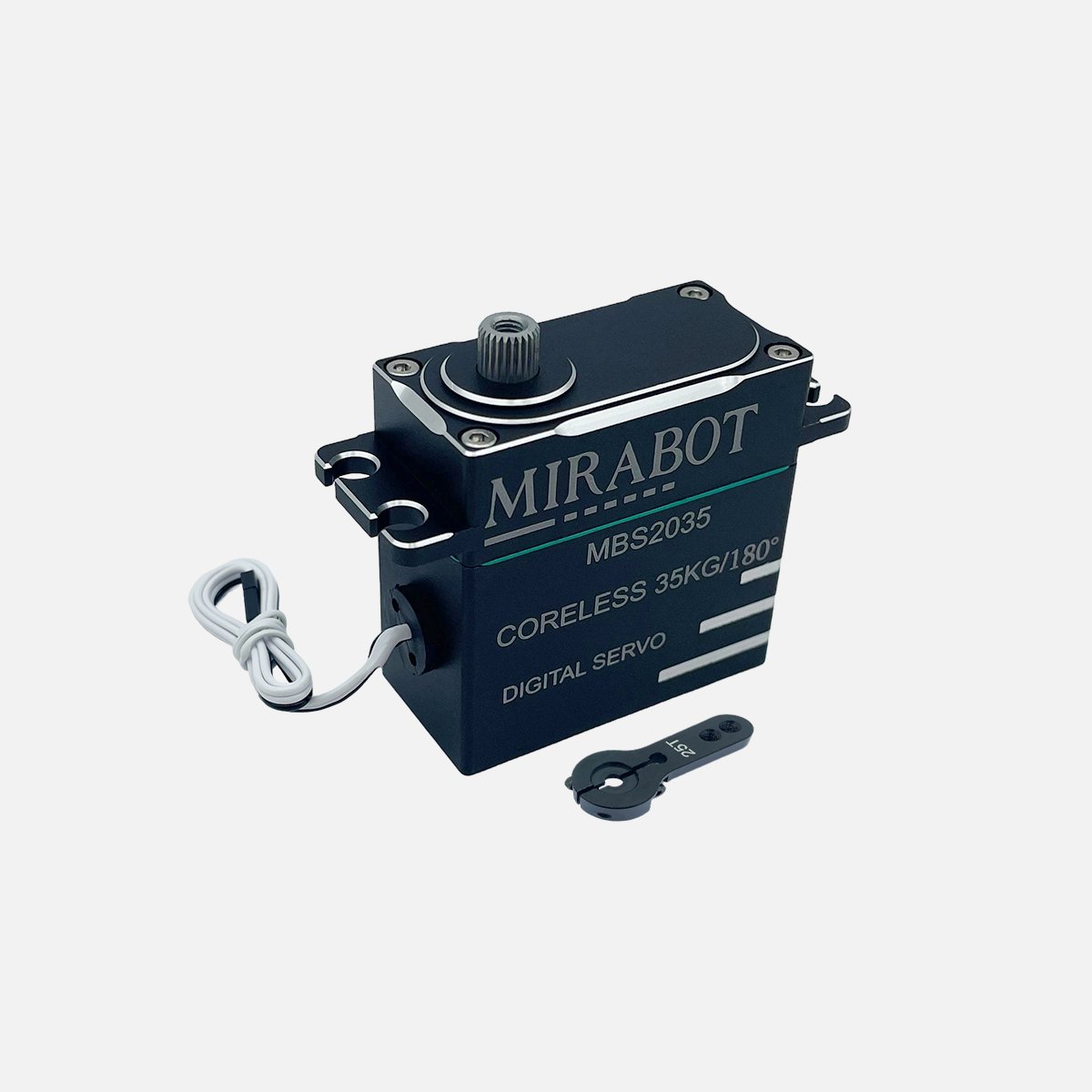

【MBS2035/180°】35kg High-Torque, Ultra-Silent Coreless Servo Motor
Price range: $46.00 through $265.00
Product Specifications
| Item | Specification |
|---|---|
| Storage Temperature Range | -10 °C to 50 °C |
| Operating Temperature Range | -20 °C to 60 °C |
| Operating Voltage | 6 V / 7 V / 8.4 V |
| No-Load Speed | 0.15 s/60° (6 V) / 0.13 s/60° (7 V) / 0.11 s/60° (8.4 V) |
| No-Load Current | 250 mA (6 V/7 V) / 260 mA (8.4 V) |
| Stall Torque | 28.9 kg·cm (6 V) / 32 kg·cm (7 V) / 35 kg·cm (8.4 V) |
| Stall Current | 3 A (all voltages) |
| Input Voltage Range | 5–8.4 V |
| Rated Current | 1.0 A |
| Operating Frequency | 50–200 Hz |
| Dimensions | 40.5 × 20 × 40 mm |
| Mechanical Range | 180° (500→2500 μsec) |
| Gear Material | Aluminum Alloy |
| Bearing Type | 2BB / 4 Bearings |
| Connector Type | JR Type |
| Cable Material | PVC |
| Cable Length | 300 mm |
| Weight | 71 g ± 2 g |
| Output Shaft Spec | 25T / 6 mm |
| Gear Backlash | ≤ 0.5° |
| Output Shaft Screw | M3 × 5 |
| Angle Sensor | Potentiometer Type |
| Motor Type | Hollow Cup Motor |
| Case Material | Aviation-Grade Aluminum Alloy |
| Control Method | Pulse Width Modulation (500–2500 μsec) |
| Control Signal | PWM |
| Control System | Digital Comparator |
| Left–Right Angle Deviation | ≤ 0.5° |
| Operating Angle | 180° (500→2500 μsec) |
| Neutral Point Deviation | ≤ 0.5° |
| Neutral Position | 1500 μsec |
| Dead Band | ≤ 3 μsec |
| Rotation Direction | Counterclockwise (1500→2500 μsec) |
| Pulse Width Range | 500→2500 μsec |
| Electronic Protection | Stall Protection (7 seconds) |
| Thermal Protection | Activates above 70 °C |
| Endurance Test | 50,000+ cycles |
| Waterproof Rating | Not waterproof |
Noise Test
The video below shows a noise test recorded approximately 30 cm from the servo body.

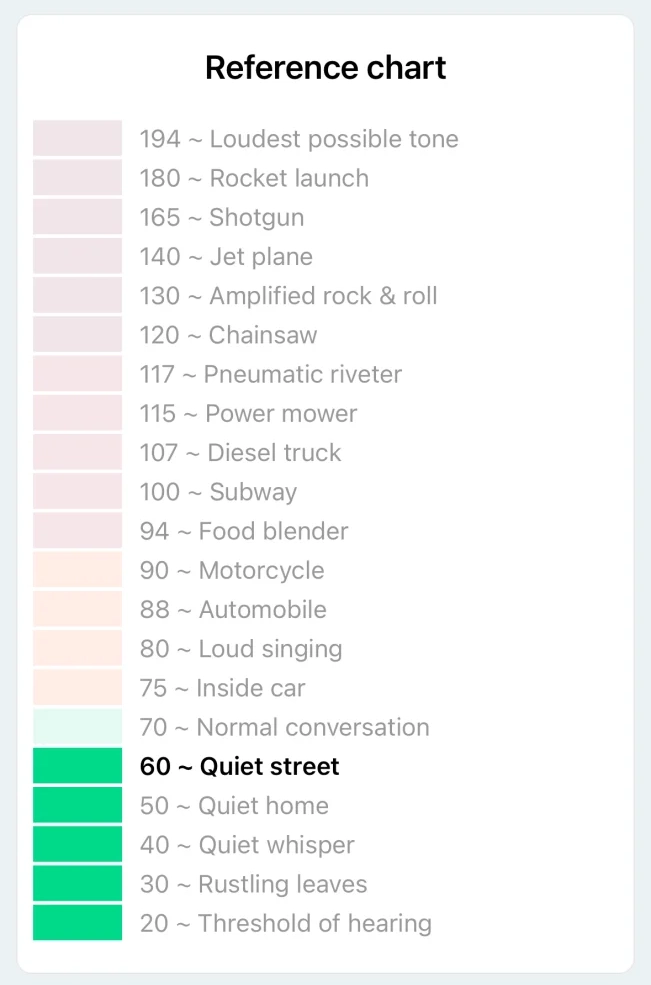

The noise level was measured using the “Decibel X” app, and the app’s reference noise chart is also shown for comparison.
Notice
- All of our products are intended for novelty use only.
We are not responsible for any accidents, injuries, or damages resulting from misuse or use for unintended purposes. - Although every product is inspected before shipping, please note that due to the nature of 3D-printed manufacturing, small surface marks or uneven textures may be present.
These are a normal result of the production process and do not indicate a defect.
